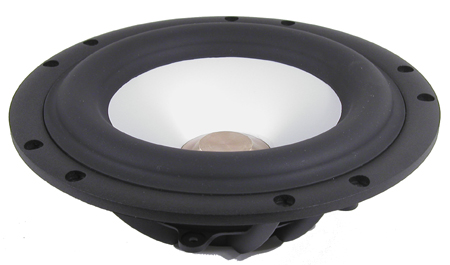

23W Passive Radiator

Quantity in Basket: none
Code: 23W-0-00-00
Price: $167.00
Shipping Weight: 8.00 pounds



Quantity:

    This is the passive radiator intended for use with the 23W/4557T active woofer. We recommend putting both in a 1.0 cubic foot enclosure. This should yield a bass response down to 25Hz. The woofer should still be linear at 180 watts and have an output of about 104dB.


TECHNICAL DATA:
Sensitivity 2.83V/1M - dB
Free air resonance Fs 10.5 Hz
DC resistance - ohm
V.C. inductance - mH
Power - W
Effective cone area 232 cm2
V.C. diameter - mm
VC height -
Air gap -

max. excursion 20 mm
Air gap flux density -
Force factor BL Product - Tm
Moving mass incl. air 400 g
Net weight 1.2 kg
Vas 43.5 ltrs
Qms 11.5
Qes -
Qts -

Outside diameter: 255mm
Cut out: 225mm
Depth: 73mm
25.4mm = 1" = 2.54cm
