10 in. Aluminum High Power 4 Ohm Woofer

Quantity in Basket: none
Code: 23W-4557T
Price: $435.00
Shipping Weight: 15.00 pounds



Quantity:

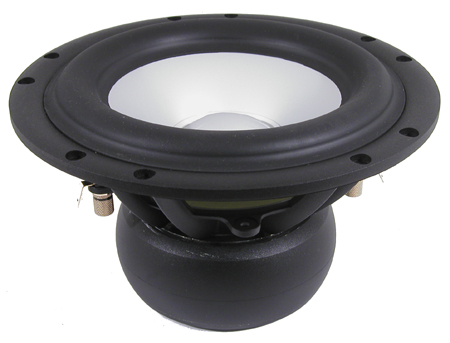

    The Scan-speak 23W/4557T is a very high end subwoofer, designed to be used with a passive radiator in a small enclosure. This sub has a very rigid aluminum cone, low loss rubber surround and cast frame. The passive radiator is similar, but with a weight attached to the bass of the cone. The 23W/4557T is using the SD-1 motor system. There are gold plated binding posts and the woofer is covered by a decorative rubber cap.
Frequency response with the passive is down to 25Hz. One cubic foot sealed has an F3 of 33Hz.

TECHNICAL DATA:
Sensitivity 2.83V/1M 82 dB
Free air resonance Fs 20.5 Hz
DC resistance 3.45 ohm
V.C. inductance 0.45 mH
Power 225 W
Effective cone area 232 cm2
V.C. diameter 50 mm
VC height -
Air gap -

Lin. & max. excursion 13 / 20 mm
Air gap flux density -
Force factor BL Product 9.3 Tm
Moving mass incl. air 101 g
Net weight 4.6 kg
Vas 45.6 ltrs
Qms 4.8
Qes 0.52
Qts 0.47

Outside diameter: 255mm
Cut out: 225mm
Depth: 135mm
25.4mm = 1" = 2.54cm

Use as is or with 23W passive radiator.
