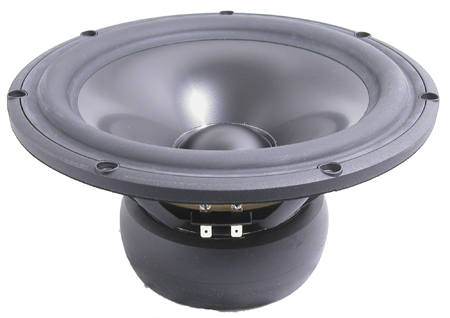

26cm Revelator Subwoofer Aluminum Cone 4 Ohms

Quantity in Basket: none
Code: 26W-4867T
Price: $359.00
Shipping Weight: 15.00 pounds



Quantity:

    The 26W/4867T a new black Aluminum cone woofer. Aluminum is a good material for subwoofer cones, very stiff and light. These cones reduce distortion and also help cool the voice coil, by conducting heat away from the coil. This woofer has a low loss suspension for increased bass response and the SD-1 motor system for less intermodulation distortion. Very rigid cast frame, large windows.

We recommend a 2.5 cubic foot enclosure with a 3" diameter vent by 10" long, the F3 would be about 29Hz.

TECHNICAL DATA:
Sensitivity 2.83V/1M 89 dB
Free air resonance Fs 18 Hz
DC resistance 3.7 ohm
V.C. inductance 0.25 mH
Power 170 W
Effective cone area 320 cm2
V.C. diameter 50 mm
VC height -
Air gap -

Lin. & max. excursion 9 / 14 mm
Air gap flux density -
Force factor BL Product 8.3 Tm
Moving mass incl. air 51 g
Net weight 3.7 kg
Vas 223 ltrs
Qms 5.8
Qes 0.31
Qts 0.30
