OMEGA� PRO15
Nominal Basket Diameter Impedance Power Rating Resonance Usable Frequency Range Sensitivity Magnet Weight Gap Height Voice Coil Diameter
Mounting Information Recommended Enclosure Volume (vented) Overall Diameter Baffle Hole Diameter Front Sealing Gasket Rear Sealing Gasket Mounting Holes Diameter Mounting Holes B.C.D. Depth Shipping Weight
Thiele-Small Parameters Resonant Frequency (fs) Impedance (Re) Coil Inductance (Le) Electromagnetic Q (Qes) Mechanical Q (Qms) Total Q (Qts) Compliance Equivalent Volume (Vas) Peak Diaphragm Displacement Volume (Vd) Mechanical Compliance of Suspension (Cms) BL Product (BL) Diaphragm Mass inc. Airload (Mms) Equiv. Resistance of Mechanical Suspension Loss (Rms) Efficiency Bandwidth Product (EBP) Voice Coil Overhang (Xmax) Surface Area of Cone (Sd) Impedance at Resonance (Zmax) Maximum Mechanical Limit (Xmech)
15", 381mm 8 ohms 800Wrms 39Hz 35Hz - 2kHz click here for guide 109oz. 0.375", 9.52mm 4.0", 101.6mm
96 - 158 liters 3.4 - 5.6 cu. ft. 15.21", 386.4mm 14.0", 355.5mm fitted as standard fitted as standard 0.275", 7mm 14.56", 369.9mm 6.35", 161mm 26lbs., 11.8 kg.
39Hz 4.98 ohms 1.48mH 0.36 8.57 0.35 196 liters 6.92 cu. ft. 408cc 0.19mm/N 17.2 T-M 88 grams 2.42N*sec/M 107 4.8mm 856.3cm2 122 ohms 30.48mm

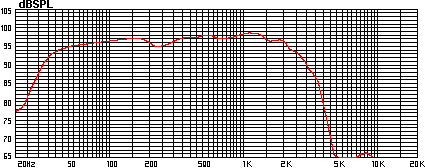

Eminence response curves are measured under the following controlled test conditions:
To download spec sheets: Omega Pro 15
Materials of Construction
Kapton coil former for increased rigidity and thermal protection
Polyamide-imide coated two-layer, 27ga., copper voice coil for improved power-handling and durability
Ferrite Magnet
Vented and extended core for increased power- handling
Die-cast aluminum basket for rigidity
Paper cone
Cloth cone edge
Solid composition paper dust cap
