  • 18 in. Paper/Cloth 109 oz. 600 watts Cast Frame

18 in. Paper/Cloth 109 oz. 600 watts Cast Frame

18 in.  Paper/Cloth 109 oz. 600 watts Cast Frame
    close
    Code: OmegaP-18A
    Price: $229.95
    Shipping Weight: 35.00 pounds
    Quantity in Basket: None
    Quantity:

    Product Description:

    OMEGA� PRO18

    For all high power bass applications

    Nominal Basket Diameter
    Impedance
    Power Rating
    Resonance
    Usable Frequency Range
    Sensitivity
    Magnet Weight
    Gap Height
    Voice Coil Diameter

    Mounting Information
    Recommended Enclosure Volume*    (vented)

    *The enclosure volume printed in the catalog is a misprint.
    Overall Diameter
    Baffle Hole Diameter
    Front Sealing Gasket
    Rear Sealing Gasket
    Mounting Holes Diameter
    Mounting Holes B.C.D.
    Depth
    Shipping Weight

    Thiele-Small Parameters
    Resonant Frequency (fs)
    Impedance (Re)
    Coil Inductance (Le)
    Electromagnetic Q (Qes)
    Mechanical Q (Qms)
    Total Q (Qts)
    Compliance Equivalent Volume (Vas)

    Peak Diaphragm Displacement Volume (Vd)
    Mechanical Compliance of Suspension (Cms)
    BL Product (BL)
    Diaphragm Mass inc. Airload (Mms)
    Equiv. Resistance of Mechanical
              Suspension Loss (Rms)
    Efficiency Bandwidth Product (EBP)
    Voice Coil Overhang (Xmax)
    Surface Area of Cone (Sd)
    Impedance at Resonance (Zmax)
    Maximum Mechanical Limit (Xmech)



    18", 457.2mm
    4
    ohms* or 8 ohms
    800Wrms
    28Hz
    25Hz - 2kHz
    click here for guide
    109oz.
     0.375", 9.52mm
    4.0", 101.6mm


     142 - 170 liters
     5 - 6 cu. ft.
    18", 457.2mm
    16.56", 420mm
    fitted as standard
    fitted as standard
    0.25", 6.4mm
    17.25", 438.2mm
    8.15", 207mm
    30lbs., 13.6 kg.


    28Hz
    5.1
    ohms
    1.67mH
    0.25
    5.53
    0.24
    354 liters
    12.49 cu. ft.
    635cc
    0.19mm/N
    25 T-M
    171 grams

    5.46N*sec/M
    114
    4.8mm
    1159cm2
    97 ohms
    32.0mm

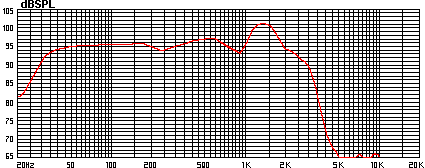

     Eminence response curves are measured under the following controlled test conditions:

    •  All speakers are tested at 1W/1m using a variety of test set-ups for  the appropriate impedance
    • LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle
    • 2ft. X 2 ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction
    • Hafler P1500 Trans-Nova amplifier
    • 2700 cu. ft. chamber with  fiberglass on all six surfaces (three with custom-made wedges)

    To download spec sheets: Omega Pro 18

    Materials of Construction

    • Kapton coil former for increased rigidity and
      thermal protection

    • Polyamide-imide coated two-layer, 27ga., copper voice coil for improved power-handling and durability

    • Ferrite Magnet

    • Vented and extended core for increased power- handling

    • Die-cast aluminum basket for rigidity

    • Paper cone

    • Cloth cone edge

    • Solid composition paper dust cap
