Morel Elite 2" Dome Midrange

Morel Elite Series EM1308 2" Textile Dome Midrange

• 130mm IDR Improved Dispersion Recess Aluminum face plate
• 2.1" Acuflex hand coated soft dome
• 2.1" large Hexatech Aluminum voice coil
• Internally damped Aluminum rear chamber
• Wide range linear performance
• Low resonance
• High power handling
• Nominal impedance 8 ohm

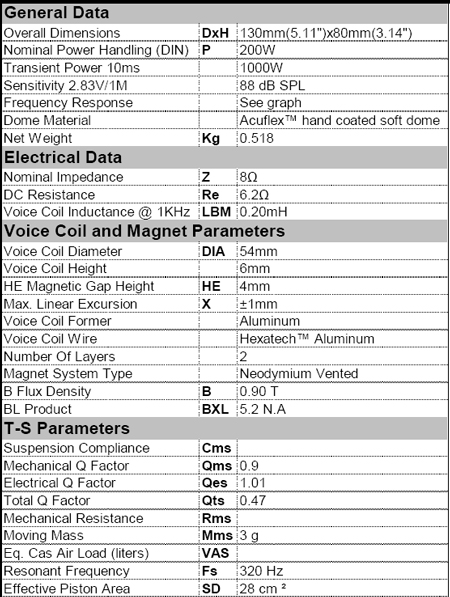

Specifications:
Resonance Frequency (fs) 320 Hz
SPL 88 dB (1W/1M)
Frequency range 500 to 5000Hz
Re 6.2 ohm
Le 0.2 mH
Power (DIN) 200 W

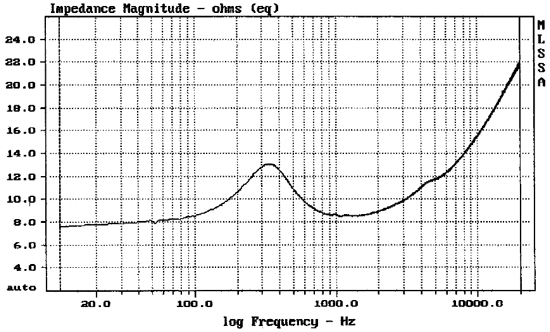

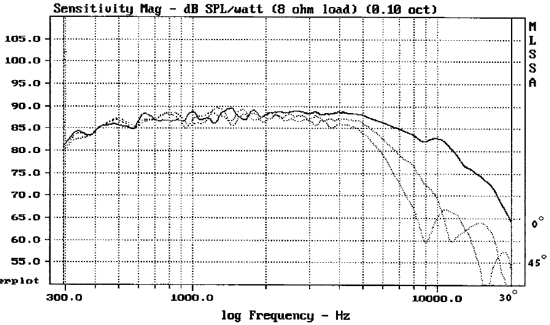

See pdf file for more complete specifications and curves.

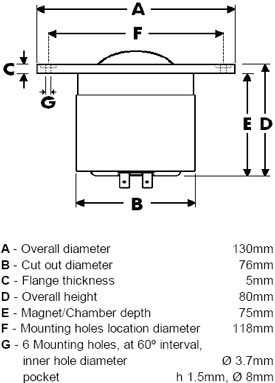

Dimension:
Flange diameter 130mm
Cut out diameter 76mm
Depth 80mm
Flange thickness 5mm
25.4mm = 1 inch
