Key Features

• Signature Series styling with cast aluminum frame, aluminum cone, and rubber surround — visually identical to the SS10-22 driver
• Passive radiator design eliminates port noise and enables deep bass from compact enclosures
• Easy tuning with threaded bolt, wing nut, and nylock nut adjustment system
• Passive radiator design eliminates port noise and enables deep bass from compact enclosures
• Includes five 75 g weights for precise mass loading and flexible tuning options
• Perfect companion for the Dayton Audio SS10-22 in compact subwoofer systems

• Dayton Audio SS10-PR 10" Signature Series Passive Radiator

  The Dayton Audio SS10-PR 10" Signature Series Passive Radiator is engineered to extend bass response in compact enclosures, perfectly complementing the SS10-22 subwoofer. By replacing a traditional port with a passive radiator, this design eliminates turbulence and noise while achieving deep, powerful bass in cabinets that remain space-efficient.

  Signature Series Styling and Construction

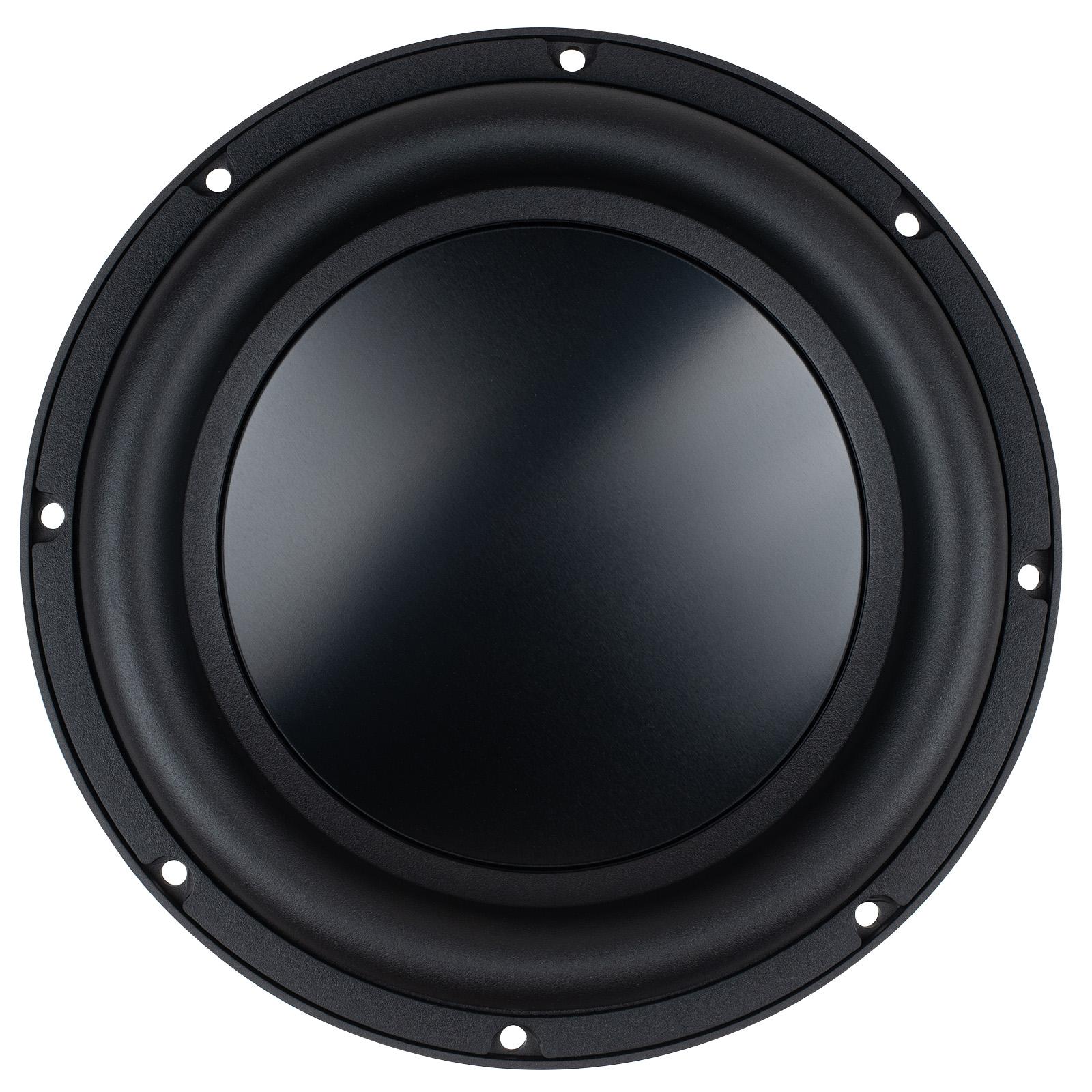

  Like every member of the Signature Series, the SS10-PR is built to match its powered counterpart in both form and function. A heavy-duty cast aluminum frame, anodized aluminum cone, and high-roll rubber surround provide the strength and excursion needed for modern high-output systems. From the front, the SS10-PR is visually identical to the SS10-22 driver, ensuring a seamless, professional appearance in any build.



  Innovative Sandwich Mass Structure

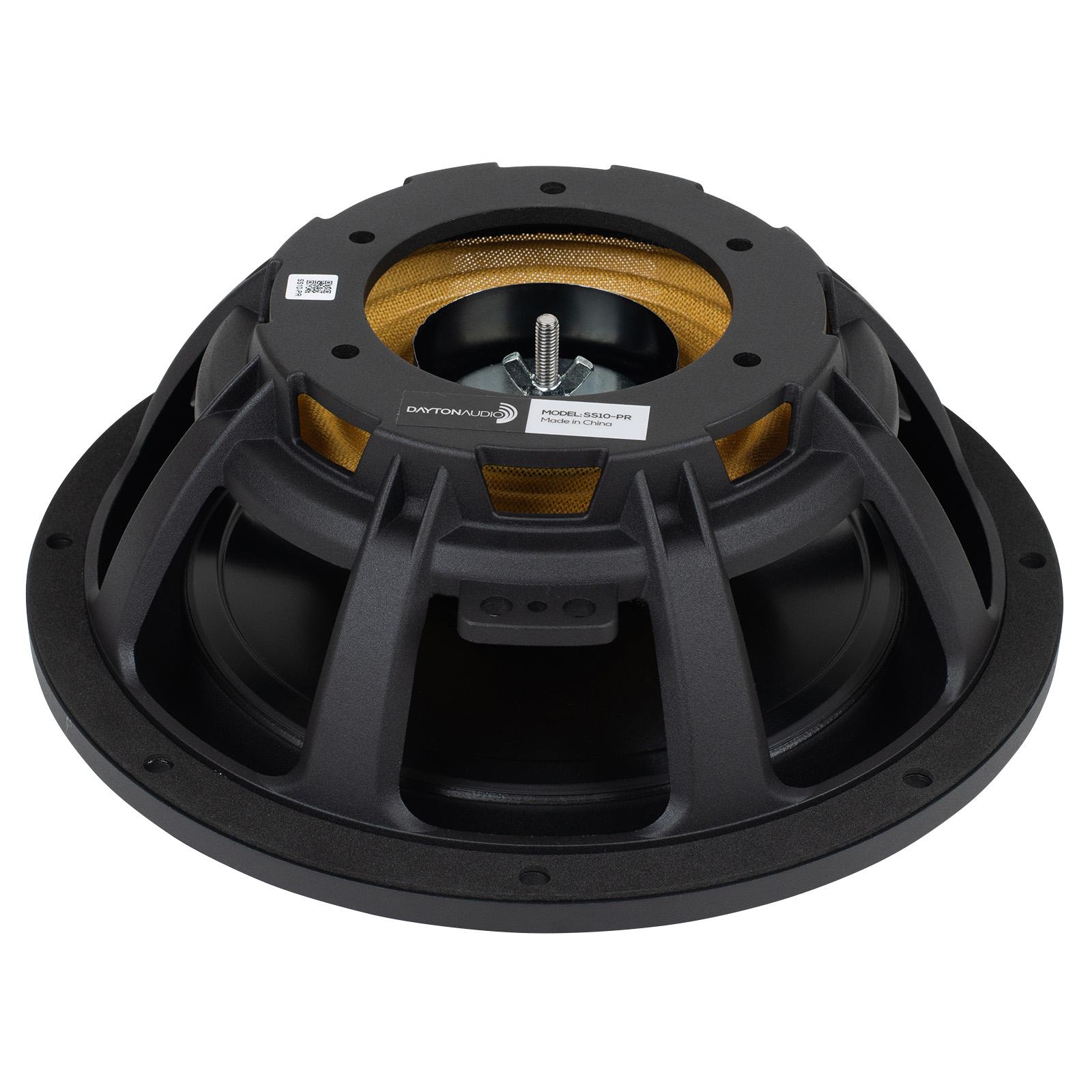

  Dayton Audio’s Sandwich Mass Structure (SMS) sets the SS10-PR apart. By placing all added tuning mass between the spider and surround, the system maintains perfect symmetry and long-term reliability under heavy excursion. Adjusting the tuning is simple thanks to the threaded bolt, wing nut, and nylock nut assembly, while the included five 75 g weights give you precise control over mass loading and tuning frequency.



  Achieve Effortless Deep Bass — the Perfect Partner for the SS10-22

  When paired with the SS10-22, the Dayton Audio SS10-PR passive radiator allows you to extract the deepest, cleanest bass possible from compact enclosures. Combining rugged construction, easy tuning, and Signature Series styling, the SS10-PR is the ideal solution for builders and designers who want maximum low-frequency performance without the drawbacks of oversized or noisy ports.

  ---



  ---

  Package Contents

  • (1) Passive Radiator
  • (5) 75 gram disk weights
  • (1) Nylon locking nut (for final assembly)
  • (1) Wing Nut
  Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd=Xmax ∗
