Audax TW034X0 1.3" Textile Dome Tweeter

Audax TW034X0 1.3" Textile Dome Tweeter- 132mm- 8 ohm

Often called a "mid-tweeter" due to the large dome, Audax TW034X0 can be crossed over lower than many smaller tweeters but with somewhat less high-frequency extension. The larger faceplate makes it a good candidate for replacing older Advent or other oversized faceplate tweeters. Audax TW034X0 is the modern replacement for vintage HD13D34H models, with greatly improved power handling and extended linear response. Used by numerous OEM manufacturers such as Spendor, Rogers, Westlake and BBC monitors. This is also the replacement tweeter on the back of the JBL SVA 2100 horn.  The TW034X0 features an aluminum face plate, replaceable voice coil (RW034X0), high power handling, and high efficiency.

• 70 Watts
• 93 dB
• No Ferrofluid
• Made in France
• Use QC110R & QC110B if not soldering to the terminals
• Replaceable voice coil RW034X0

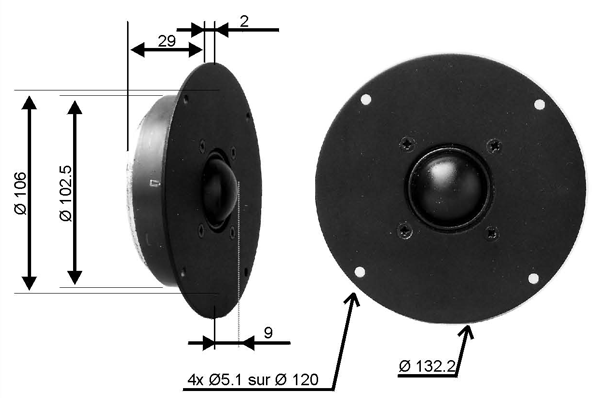

• Flange diameter 132mm (5.2")
• Cut out diameter 106mm (4.17")
• Depth 29mm (1.14")
• Flange to magnet mounting screws are spaced 42mm screw to adjacent screw
