BC25SC06-04

Vifa BC25SC06-04 1" Textile dome tweeter


• Pre-coated textile diaphragm for improve consistency
• Neodymium magnet
• Heat sink on magnet for increased power handling
• Ferrofluid cooling for increased power handling
• Slight horn loading for increased efficiency


Impedance 4 ohm
Resonance frequency (fs) 1350 Hz

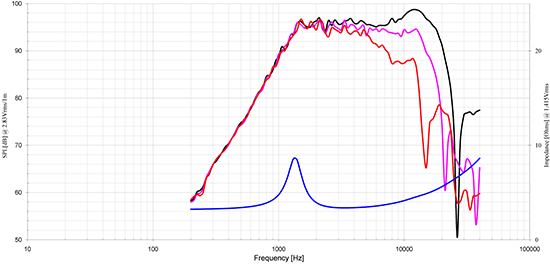

Sensitivity (2.83V@1m) 96dB
Power handling (IEC 18.3) 50 watts

Qms 2.37
Qes 2.3
Qts 1.26
Re 2.9 ohm
Bl 1.7 Tm
Mms 0.35g
Cms 0.27 mm/N
Sd 6.8 cm2

VC diameter 25mm
VC height 1.8mm
Gap height 2mm

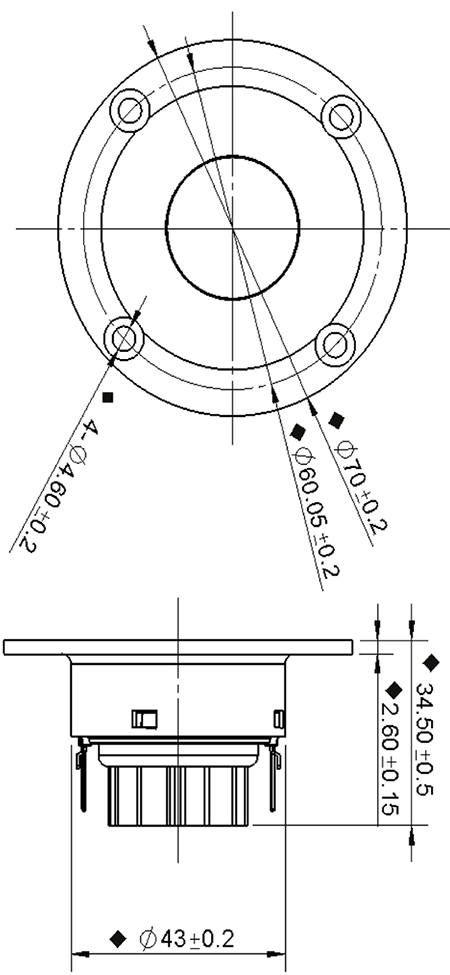

Flange diameter 70mm (2.76")
Cut out diameter 44mm (1.75")
Depth 32mm (1.25")
