Peerless BC25SC55-04 1" Textile Dome Tweeter (truncated)

Vifa BC25SC55-04 1" Textile Dome tweeter

• Pre-coated textile dome for improved consistency
• Neodymium magnet (inherently shielded)
• Rear heat sink on magnet for improved power handling
• Ferrofluid cooled voice coil for improved power handling

Impedance 4 ohm
Resonance frequency (fs)  1320 Hz
Sensitivity (2.83V@1m)  94dB
Power Handling (IEC 18.3) 50 watts

Qms  2.9
Qes 1.7
Qts 1.1
Sd 6.8 cm2
Re 3 ohm
VC  diameter  25mm
VC height 2mm
Gap  height  3mm

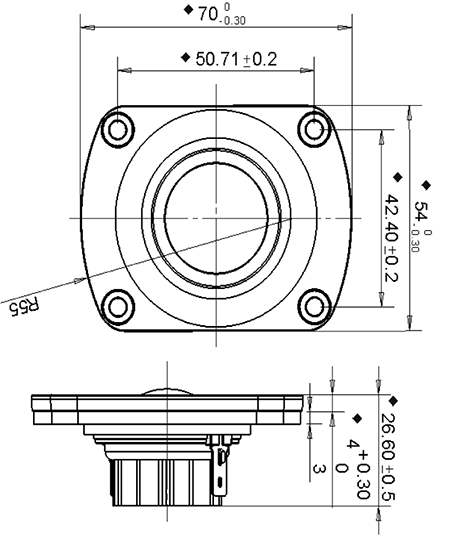

Flange (round part)  70mm (2.76")
Flange (truncated part) 54mm (2.12")
Cut out diameter  44mm  (1.75")

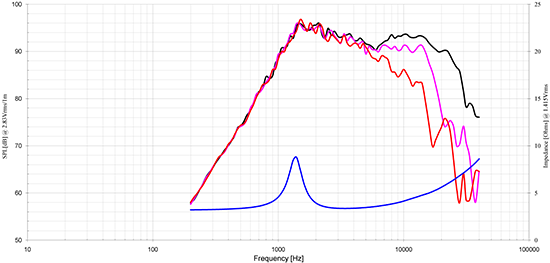

Click for specs
