BC25TG15-04

BC25TG15-04
    close
    Code: BC25TG1504
    Price: $17.00
    Shipping Weight: 1.00 pounds
    Quantity in Basket: None

    Vifa BC25TG15-04 1" Textile dome tweeter

    • Pre-coated textile diaphragm for improved consistency
    • Damped cavity in pole for lower resonance frequency and reduced distortion
    • Ferrofluid cooled voice coil for improved power handling
    • Optimized face plate for linear response

    Impedance 4 ohm
    Resonance frequency (fs) 1130 Hz
    Sensitivity 94dB
    Power Handling (IEC) 50 Watts

    Qms 1.59
    Qes 1.06
    Qts 0.64
    BL 2.1 Tm
    Mms 0.4g
    Sd 6.8 cm2
    Re 3.1 ohm
    Vc diameter 25mm
    VC height 2mm
    Gap height 3mm

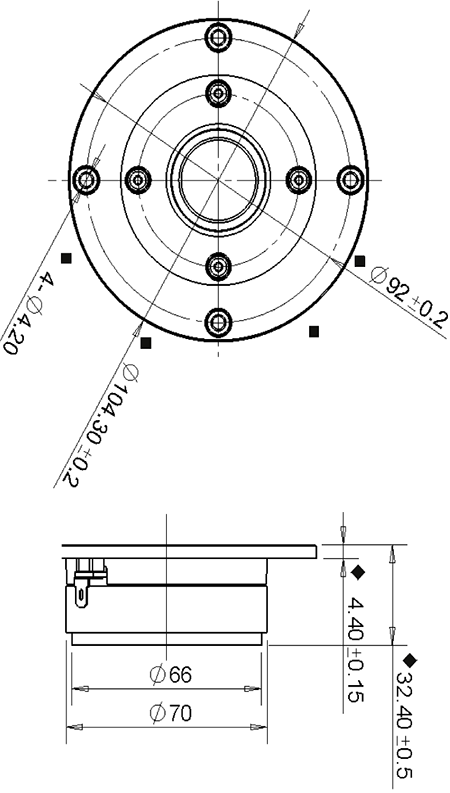

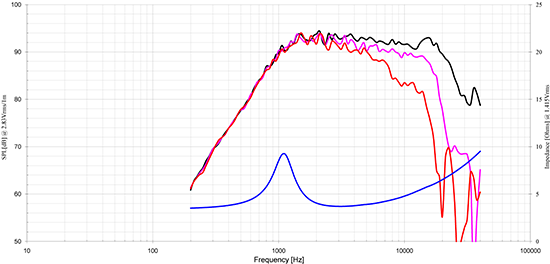

    See pdf file for curve and mechanical drawing.

    104mm diameter face plate (4")
    70mm diameter hole size (2.76")
    26.7mm depth (1.1")
