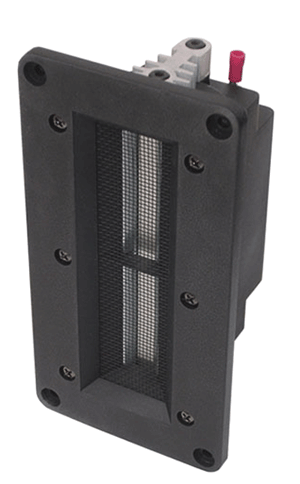

Fountek Neo CD 2.0M 5 in. True Ribbon Tweeter

Fountek Neo CD 2.0M 5 in. True Ribbon Tweeter
    close
    Code: NeoCD20M
    Price: $169.95
    Shipping Weight: 6.00 pounds
    Quantity in Basket: None
    Quantity:

    Product Description:

    NeoCD2.0M ribbon tweeter is a high-performance component which is probably the best choice to building/upgrade your loudspeaker.

    Feature

    • Super strong Neodymium magnet fro high efficiency
    • Build-in impedance conversion transformer
    • Effective from 1,200Hz upwards due to the large diaphragm area and low self-resonance.
    • Thin enforced sandwich ribbon diaphragm guarantees a high degree of signal fidelity and broad frequency response.
    • Low distortion factor, good power-handling capabilities, high linear impedance and amplitude frequency response and the broad frequency response range.
    • Flat impedance from 1,000 to 40,000Hz

    Specifications
    Ribbon Material
    Advanced composite material
    Ribbon Mass
    34mg
    Ribbon Dimension
    8mm x 120mm x 0.02mm
    Ribbon Area
    960 square millimeters
    Gap Flux
    0.6 Tesla
    Gap Height
    3mm
    Impedance
    7 ohm
    DCR
    0.02 Ohm

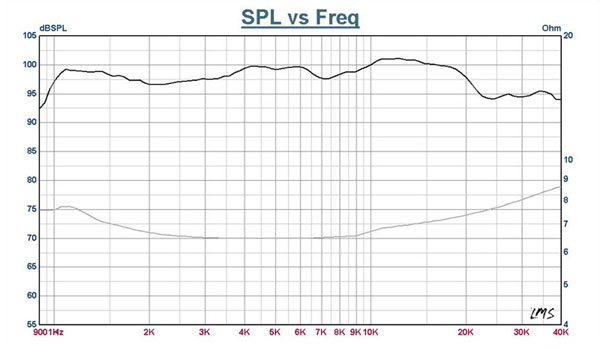

    Frequency Response
    1,200Hz to 40,000Hz
    Sensitivity
    98dB / 2.83V@1M
    Resonance Frequency
    300Hz
    Power Handling
    20W Nominal, 50W Max
    Recommended Crossover
    2,000Hz @ 2nd Order
    Price Each
    $139.95

    www.fountek.net

    Ribbon tweeters show a dead short to your amplifier!  You must use a capacitor on them, when testing them or when using them with an electronic crossover!

    Fountek Ribbon Testing Instructions

    • 0.5W@0.5meter signal from 1,000Hz~40,000Hz - without capacitor, and must make sure amplifier is well connected with tweeter
    • Turn off the amplifier before suspending the connection, and power off amplifier is a must before connection.
    • We do not suggest Full Range Test, because in the low frequency the impedance of tweeter is almost zero - which is very easy to burn the tweeter and makes the amplifier overloaded
    • Users may use 200 millivolt to test frequency, never do any test below 200Hz
