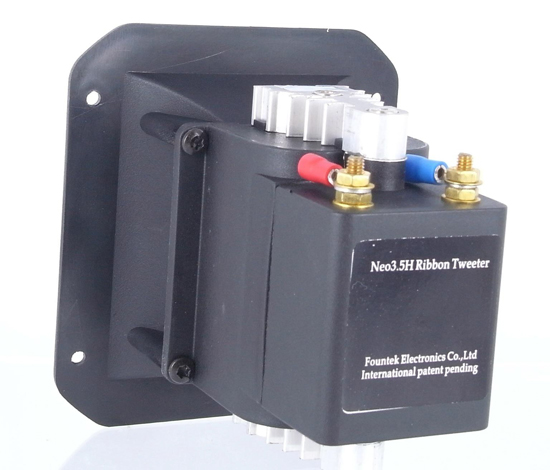

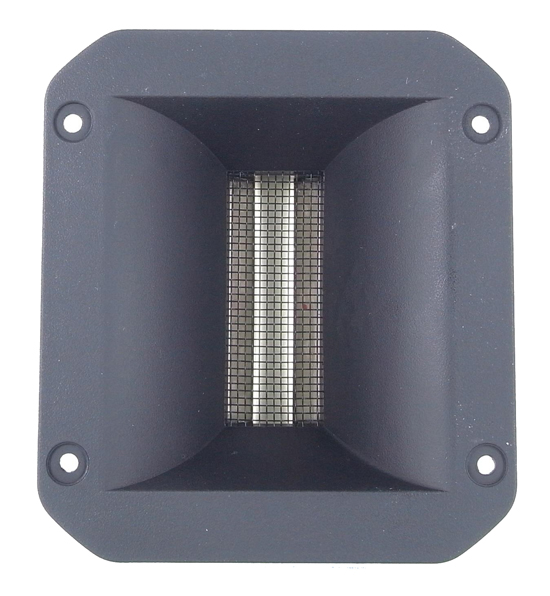

Fountek NeoCd3.5H Horn Tweeter

Code: NeoCD35H

Price: $99.95

Shipping Weight: 6.00 pounds

Quantity in Basket: None

Product Description:

Fountek NeoCd3.5H Horn Tweeter

Neodymium magnet system
3" reinforced sandwich ribbon
built in transformer
low distortion
wave guide

Ribbon tweeters show a dead short to the amplifier. You must use a capacitor on the tweeter even with an electronic crossover to protect the amplifier. We recommend a 20mfd capacitor when using an electronic crossover.

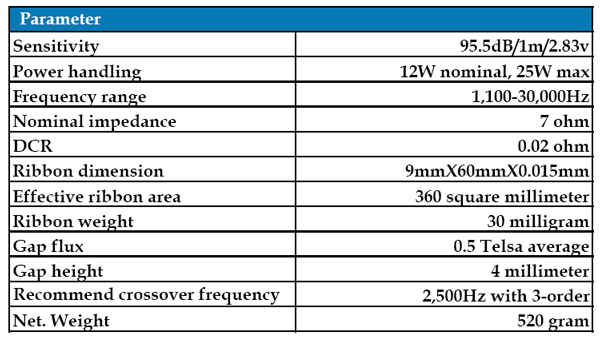

Parameter
Sensitivity	95.5dB/1M/2.83v
Power handling	12W nominal, 25W max
Frequency range	1,100-30,000Hz
Nominal impedance	7 ohm
DCR	0.02 ohm
Ribbon dimension	9x60x0.015mm
Effective ribbon area	540 square millimeter
Ribbon weight	30 milligram
Gap flux	0.5 Telsa average
Gap height	4 millimeter
Recommend cut frequency	2,500Hz with 3-order
Net.weight	520 grams
